Technology

The research group focuses on robot-based laser deposition welding. The group has a robot cell with integrated robots at its disposal for this purpose. In addition to additive manufacturing, subtractive manufacturing is also possible in the robot cell.

The robot cell is located in the ZESS building of the Ruhr University Bochum, on the former Opel site, now Mark 51°7.

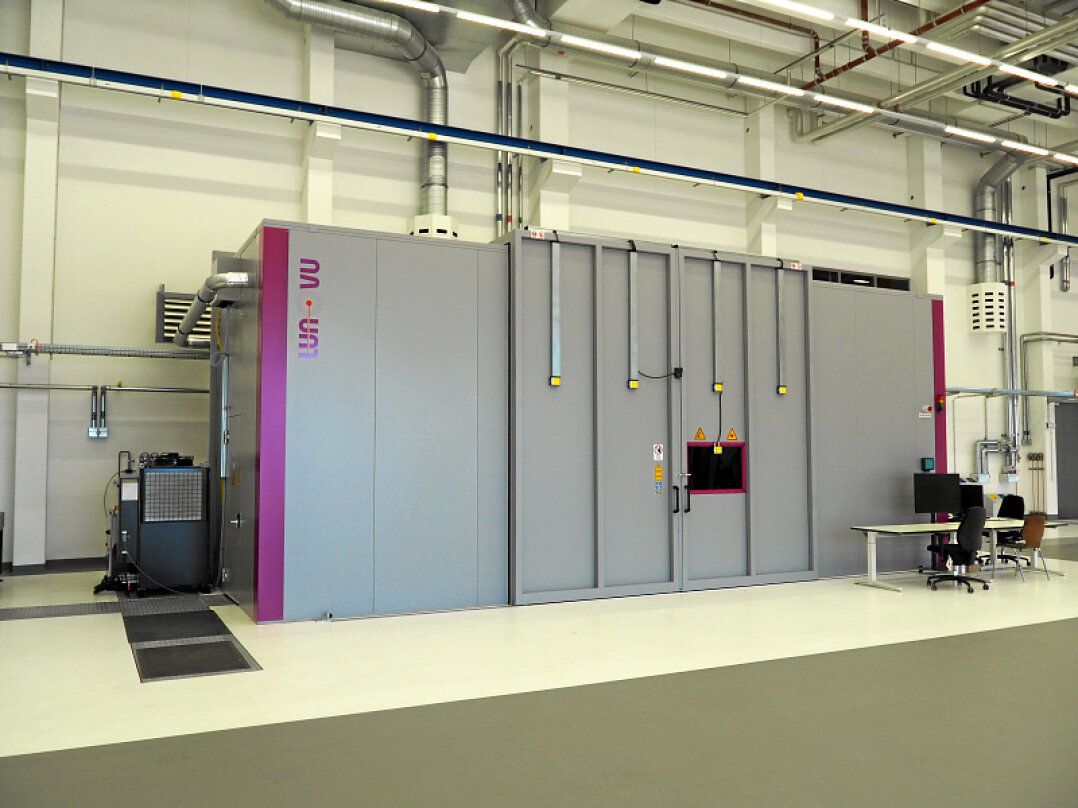

The enclosure of the system is double-walled with active monitoring of any damage caused by laser radiation.
Lupe
The enclosure of the system is double-walled with active monitoring of any damage caused by laser radiation.

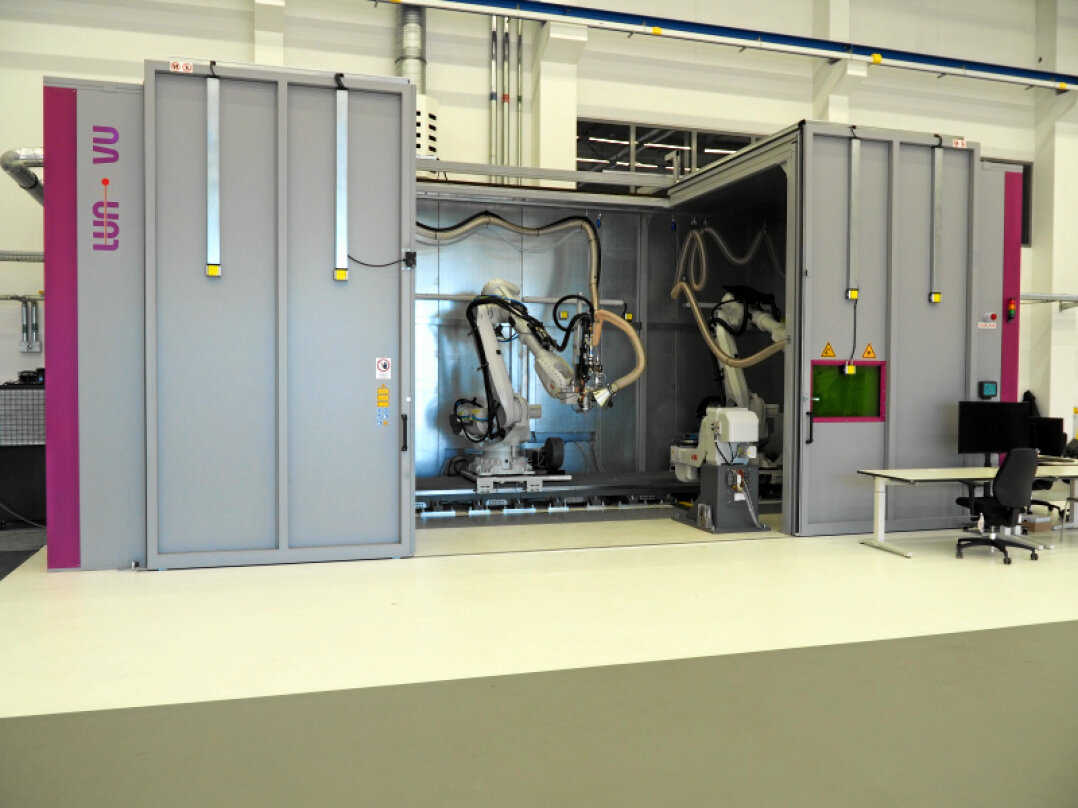

Equipped with an L-shaped door, the indoor crane can be used to bring in large, heavy components.
Lupe
Equipped with an L-shaped door, the indoor crane can be used to bring in large, heavy components.

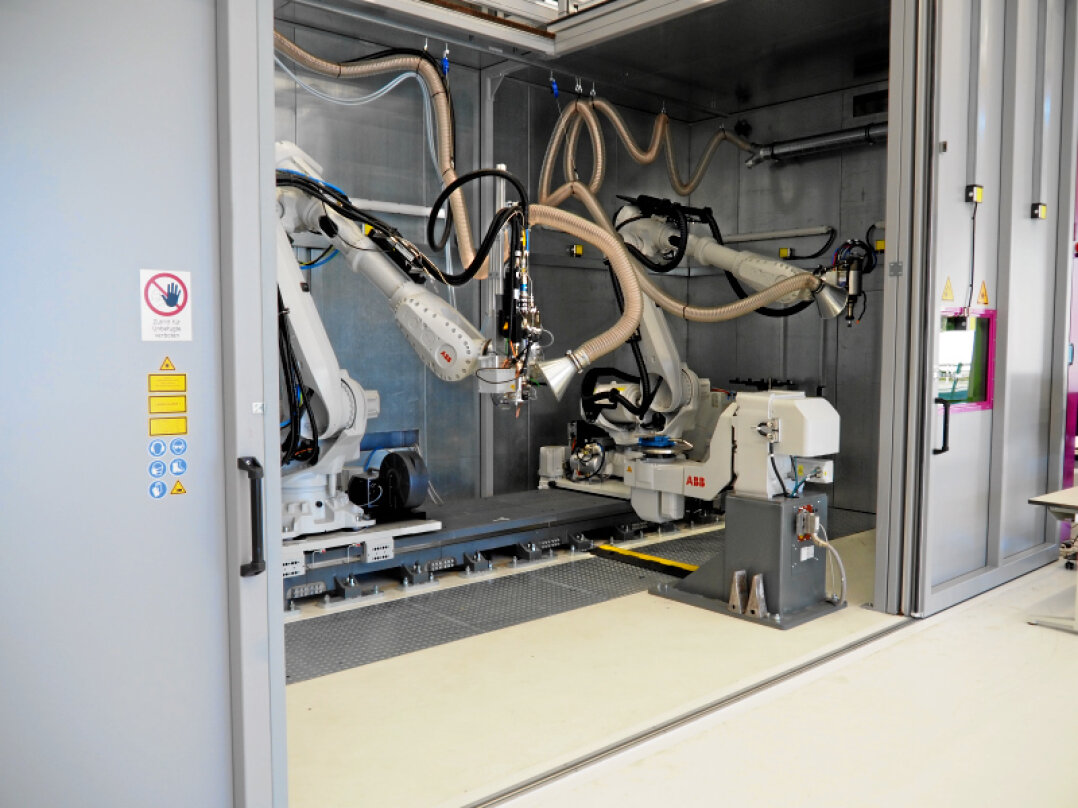

Two robots (ABB IRB 6700) on a linear axis (ABB IRBT) and a rotary swivel table (ABB IRBP 500 A).
Lupe
Two robots (ABB IRB 6700) on a linear axis (ABB IRBT) and a rotary swivel table (ABB IRBP 500 A).

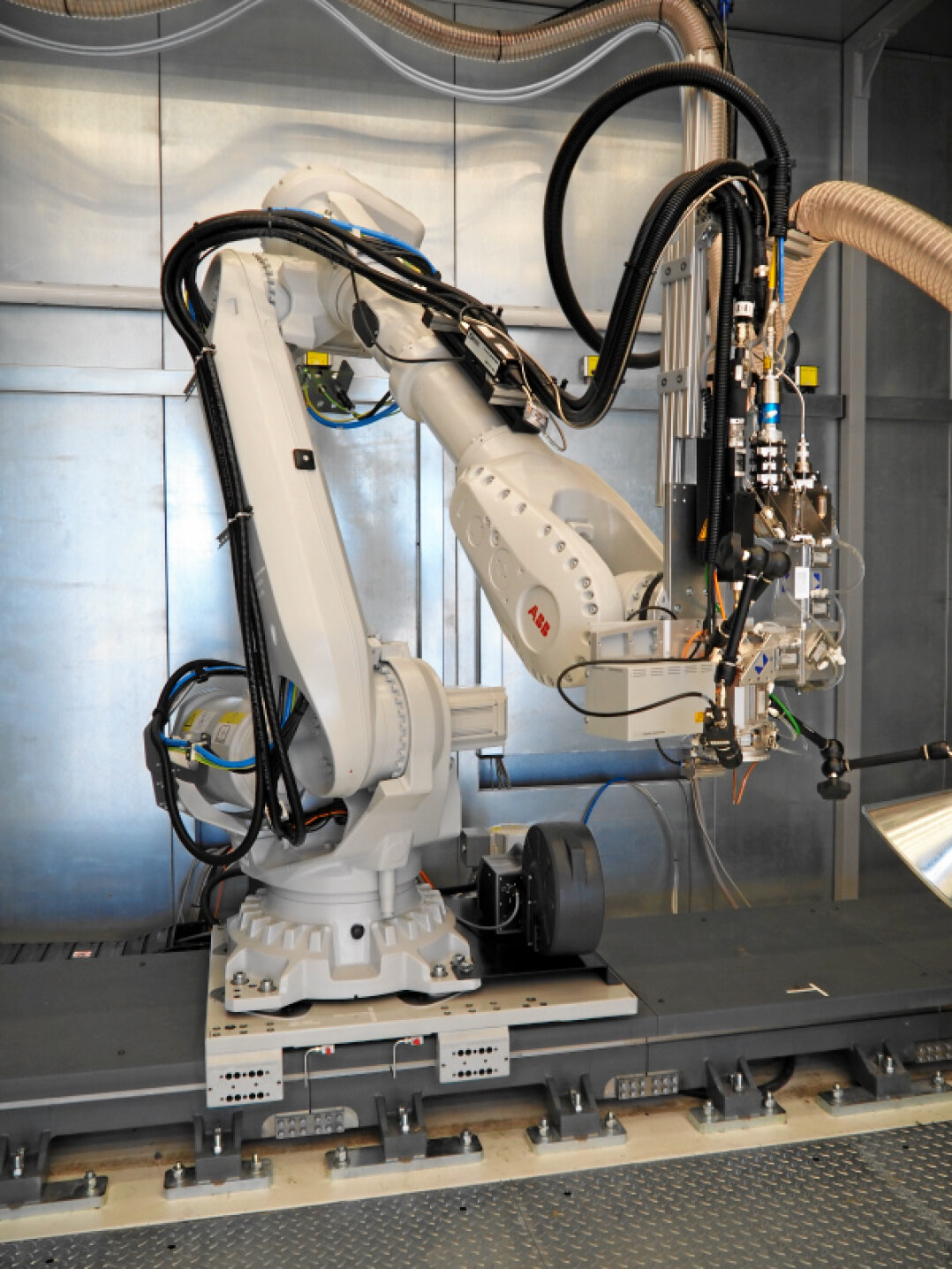

Robot with wire welding head
Lupe
Robot with wire welding head

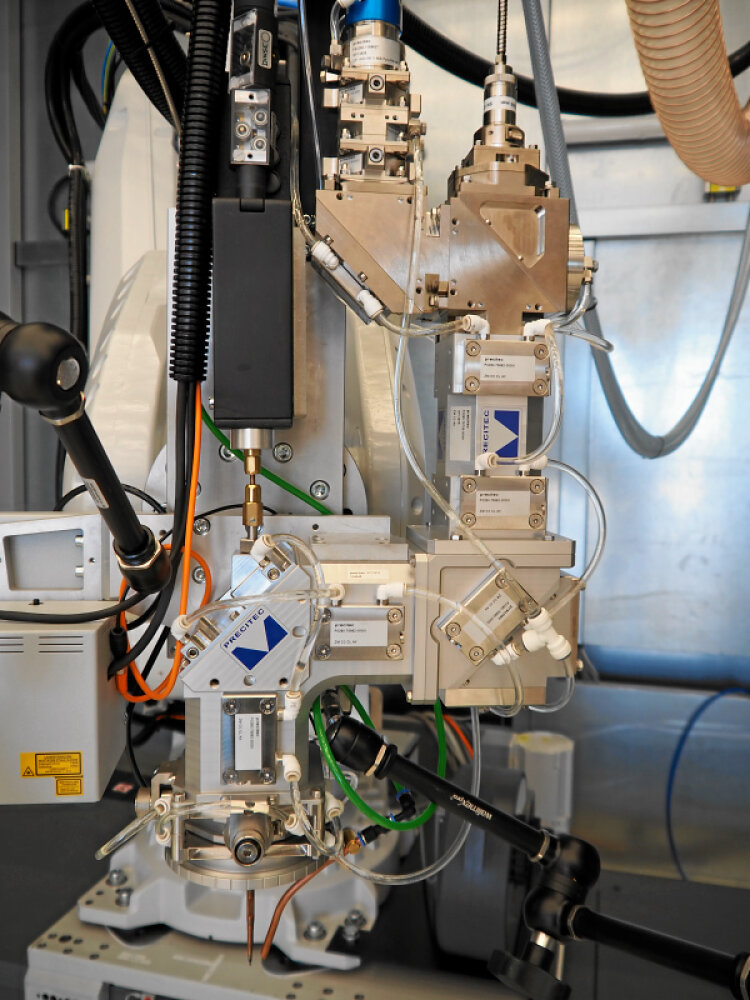

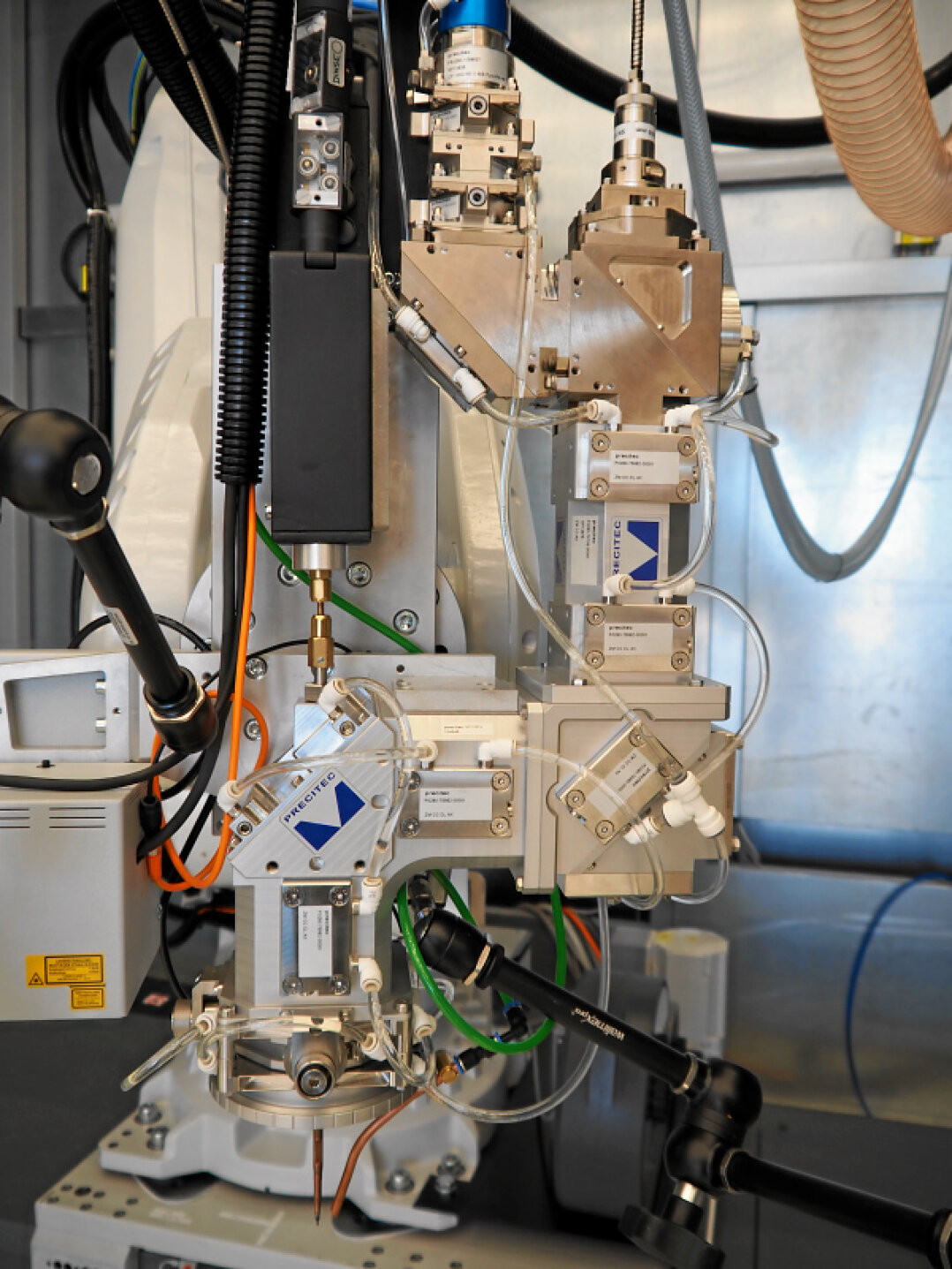

Deposition welding head: Precitec COAXprinter
Lupe
Deposition welding head: Precitec COAXprinter

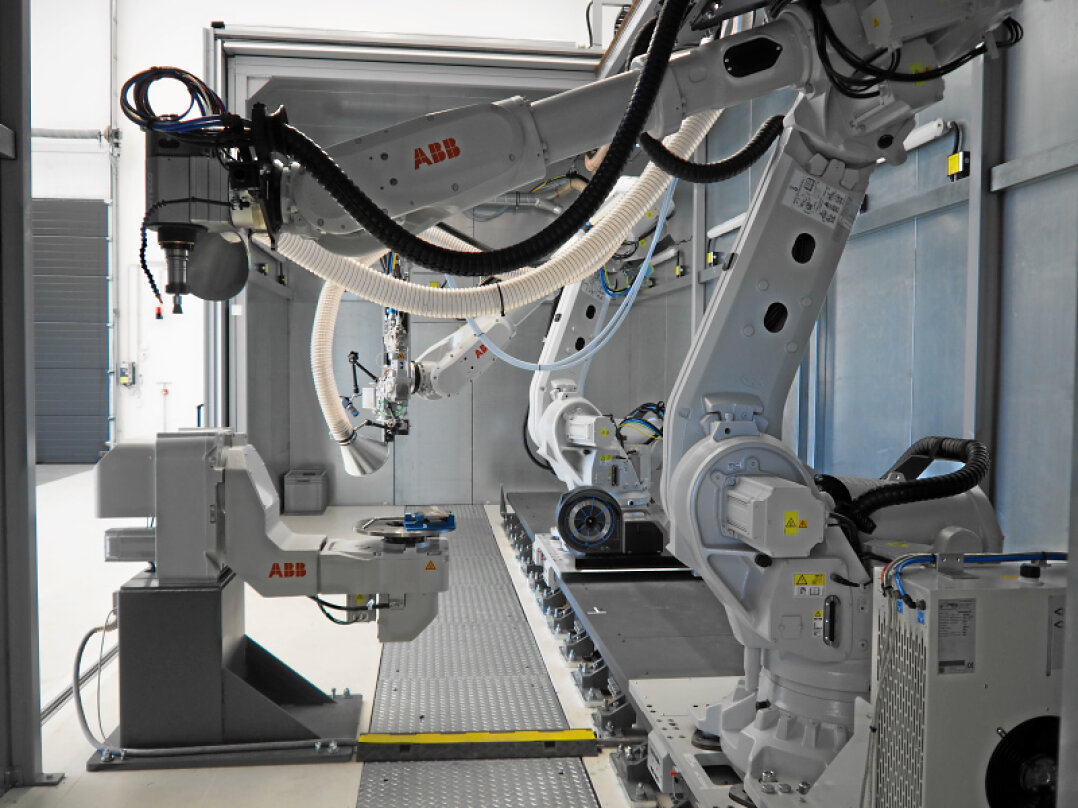

In the foreground, the robot with the milling head. The rotary swivel table can also be seen.
Lupe
In the foreground, the robot with the milling head. The rotary swivel table can also be seen.

Video: Additive and subtractive manufacturing.
