ZOMETOOL MODEL OF A 5 CELL

Here we describe how to build another orthogonal projection of the 5 cell, one of the six regular polytopes in 4-dimensional space, using the zometool system. For the model you need

  • 5 balls,
  • 2 long blue (b2) struts,
  • 4 long yellow (y2) struts,
  • 2 long red (r2) struts,
  • 2 medium red (r1) struts.

Of course one can scale down the model to b1-y1-r1-r0 (which is quite tiny).

For further information and instructions you might also wish to consult one of the following webpages:

The pictures below were taken by Eva-Maria Gassner.

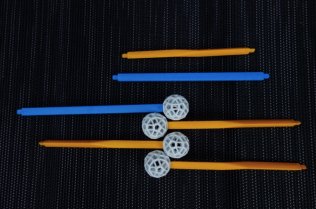

Step 1 (continued)

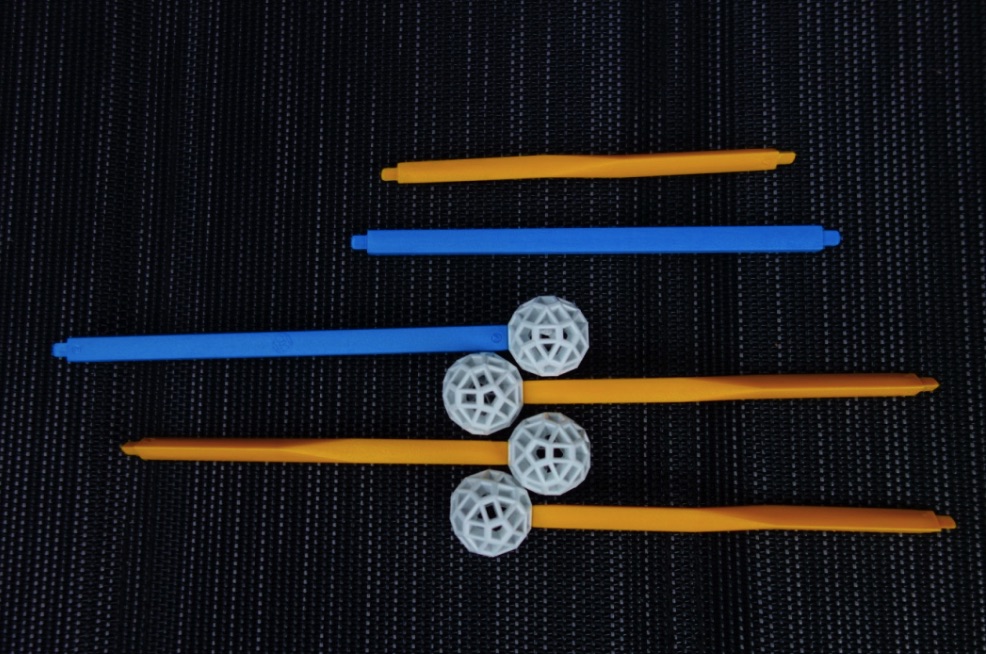

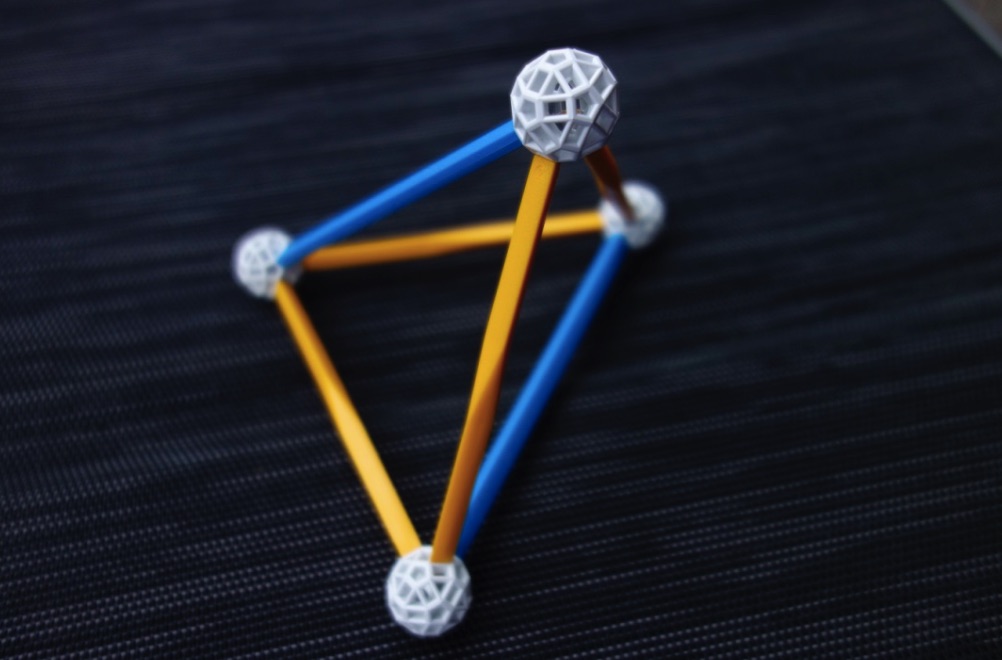

... and build a tetrahedron from them.


Step 2 (continued)

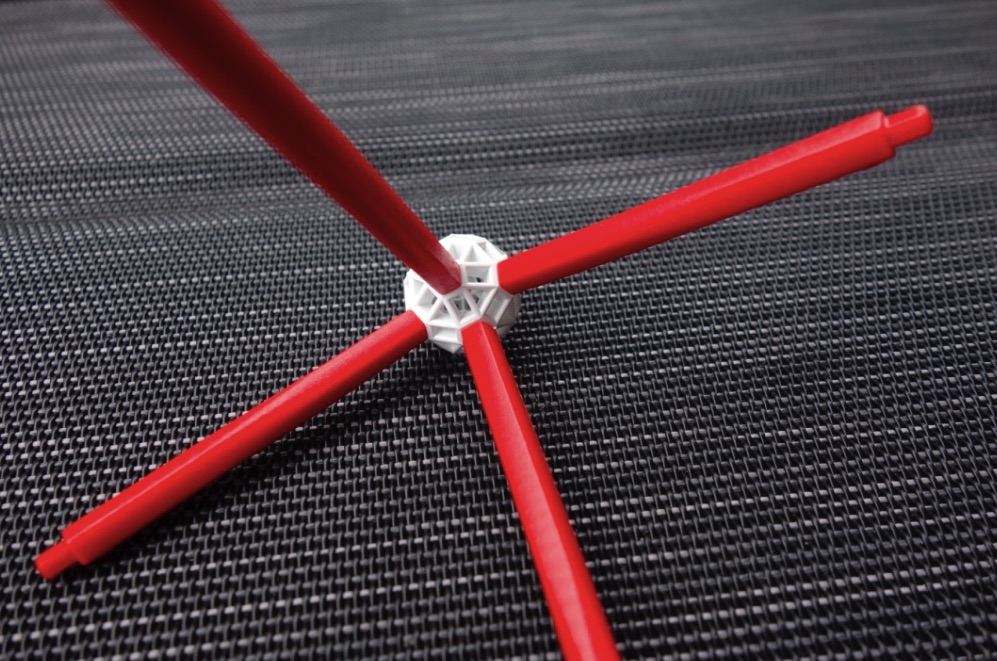

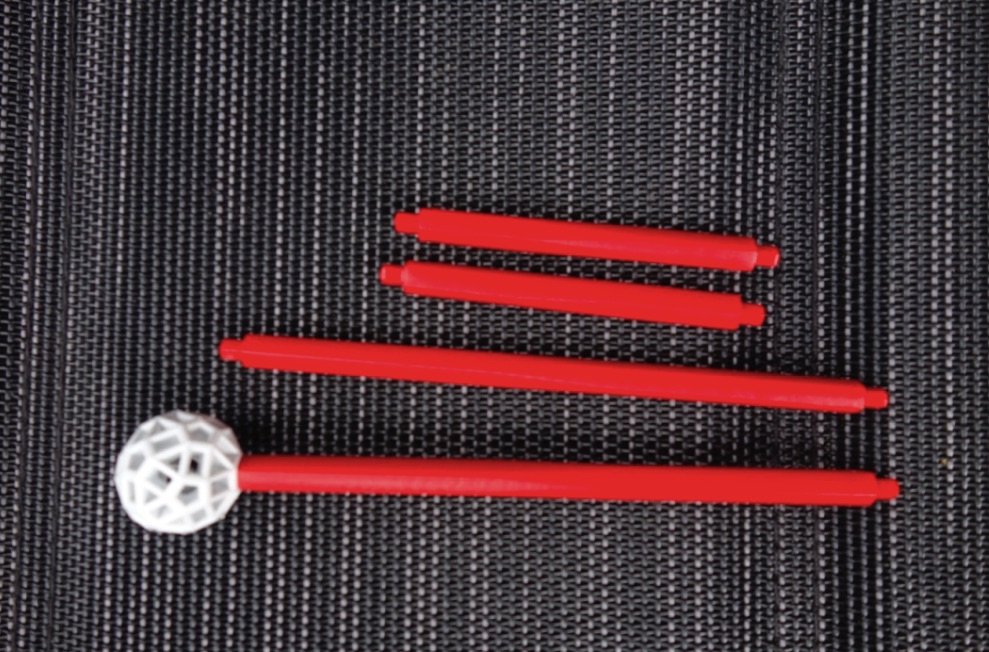

... and build a kind of 'sputnik' from them.


Step 3

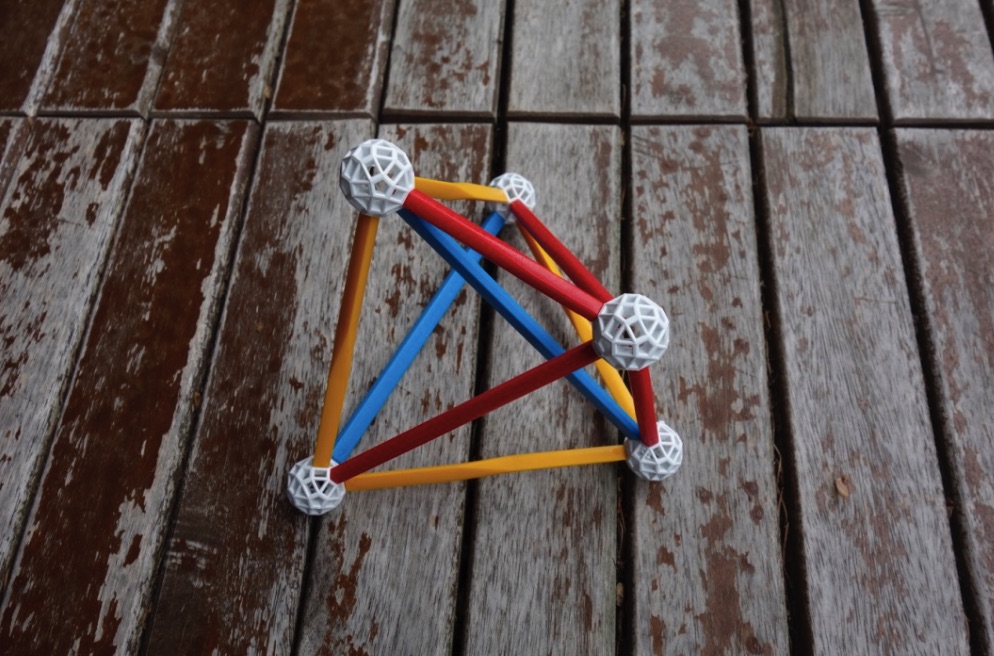

Mount the red 'sputnik' on the tetrahedron constructed in step 1 to complete the model.
